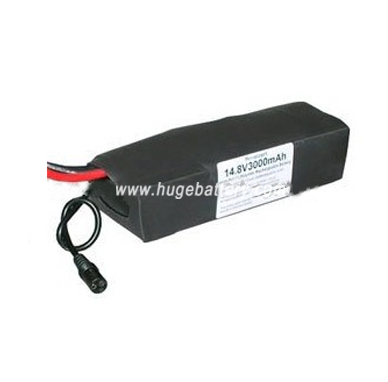

High Power Li-polymer battery pack
P/N: 6045135
Description:

14.8 v (working Voltage)
16.8 V ( peak voltage)
11 V ( cut-off voltage)
3000 mAh   ( 44.4 wh) Capacity
Dimension 148mm(5.8") x 47mm(1.9") x 38mm(1.5")
Weight 409grams (0.9 Lb)
Over-charging beyond 4.25V/cell
Over-discharging below 2.85V/cell
Over-drain beyond 30A


1.14.8 V 3 Ah pack is made by 4 pcs of High Power Polymer Li-Ion(6045135)
Wrapped by heavyduty Heat shrink tube
One PCM with balance function is installed with the battery pack to protect battery from
2.Must wait min of 30 minutes after battery is fully charged to
allow the pcm to perform balance function on all the cells within the pack.
3.Charging terminal:   4" wire of 21 AWG with two pin universal female plug.
4.charging terminal: 6" wire of 12 AWG wire without connector.
5.Optional Standard Anderson connector with 8" long 12 AWG wire. Please click here to buy seperately.
Need additional connector? Please click here to order.
6.Amp limited by wire gauge ( never discharge beyond 40 amp)
